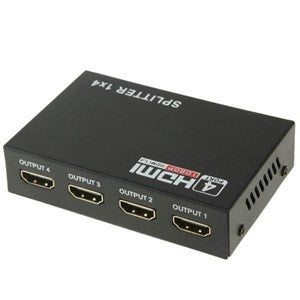

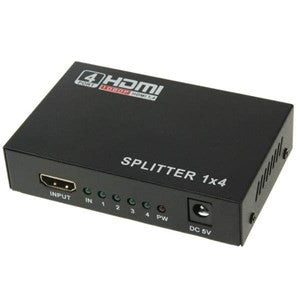

1x4 PORT HDMI Splitter With UK Charger Support 4K



  • Support HDMI 1.4b
  • Support  Full 3D
  • Support HDMI resolution up to 3840x2160/30Hz
  • Support the max baud rate of 3.4G and max bandwidth of 340Mhz
  • Support deep color 8/10/12bit
  • Support input up to 8 metres AWG26 HDMI Standard cable length,output up to 8 meter AWG26 HDMI Standard cable length

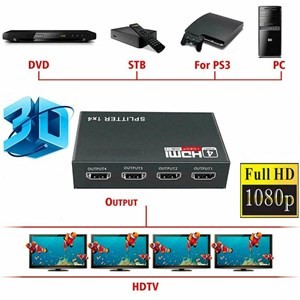

  • Displaying single source, multi-output high-definition signal source from DVD player A/V receiver, se-top box
  • 5V power adapter


HDMI Version: HDMI 1.4b

HDMI Resolution: UP TO 3840X2160/30Hz

Support video color format: 8/10/12bit deep color

Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth: 340MHz

Max baud rate: 3.4Gbps

Input cable distance: <8m AWG26 HDMI standard cable

output cable distance: <8m AWG26 HDMI standard cable

HDMI Input: 1 HDMI

HDMI Output: 4 HDMI

Max working current: 500ma

Specifications of power adapter: Input:AC (50Hz,60Hz) 100V-240V; Output:DC5V

Operating Temperature range: (-15 to +55c)

Operating Humidity range: 5 to 90%RH (No condensation)

Dimension(LxWxH): 105x50x20mm

Weight: 120g

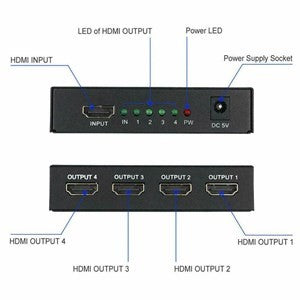

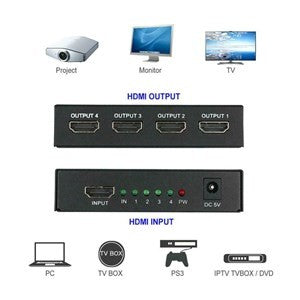

  1. Connect 1 HDMI cable from HDMI source devices into HDMI splitter input.
  2. Connect 2 HDMI cables from displayers (monitors or projectors) into HDMI splitter outputs
  3. Connect 5v power supply to the HDMI 1x4 splitter


  1. HDMI Splitter 1x4
  2. Power Adapter
  3. User Manual
